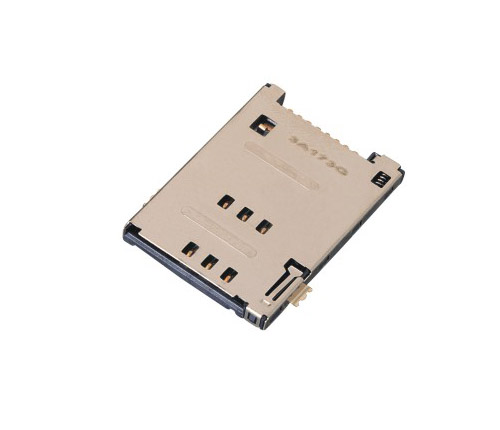

SIM CARD CONNECTOR
|
MC036-S06127G1B1L20

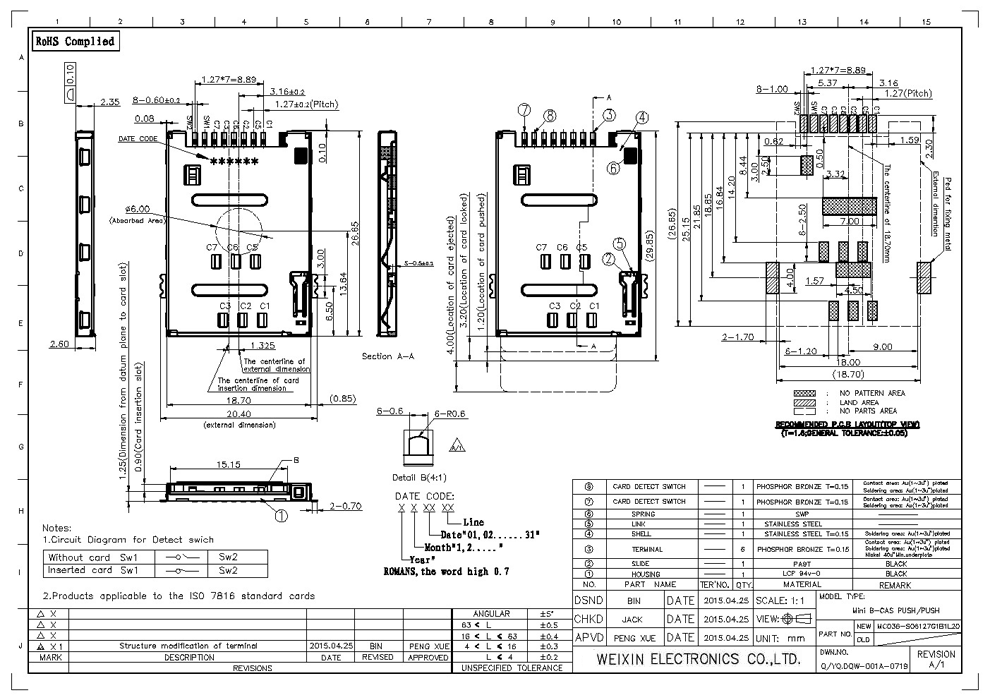

■产品类型特征 外形規格: 26.65mm(L)*18.8mm(W)*2.35mm(H) PCB安裝方式: 表面貼裝式 雙向鍵排出式(Push/Push結構) ■應用領域：手機、相機、PC及外圍設備 FP-TV HD 音響/DVD播放器 |
■材料及表面处理
| PART NAME | MATERIAL | REMARK |
| HOUSING |
HIGH TEMP.THERMO PLASTIC,UL94V-0 |
BLACK |
| SLIDE | HIGH TEMP.THERMO PLASTIC,UL94V-0 | BLACK |
| TERMINAL | PHOSPHOR BRONZE |
Contact Area:Au(1~3u")plated Soldering area:Au(1~3u")plated Nickel 40u"Min.underplate |
| SHELL | STAINLESS STEEL | Soldering Area:Au(1~3u")plated |
| LINK | SWP | / |
| SPRING | STAINLESS STEEL | / |
| CARD DETECT SWITCH | PHOSPHOR BRONZE | Contact Area:Au(1~3u")plated Soldering area:Au(1~3u")plated |
| CARD DETECT SWITCH | PHOSPHOR BRONZE | Contact Area:Au(1~3u")plated Soldering area:Au(1~3u")plated |
■主要技術指標
使用温度範圍 Temperature：-25℃～+85℃
額定負荷 Rated Load：AC 5V 0.5A
接觸電阻 Contact Resistance: ≤40mΩ
絕緣電阻 Insulation Resistance:≥100MΩ
耐壓 Withstand Voltage：AC 300V/min
插入力 Insertion Force：≤15N
壽命 Life: ≥5000 Cycles
使用温度範圍 Temperature：-25℃～+85℃
額定負荷 Rated Load：AC 5V 0.5A
接觸電阻 Contact Resistance: ≤40mΩ
絕緣電阻 Insulation Resistance:≥100MΩ
耐壓 Withstand Voltage：AC 300V/min
插入力 Insertion Force：≤15N
壽命 Life: ≥5000 Cycles
