JACK SERIES
|

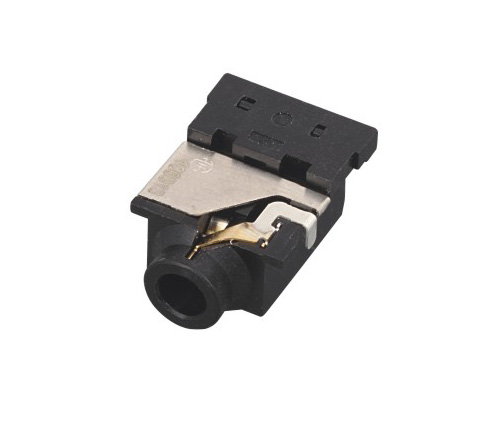

PJ-3603C-1

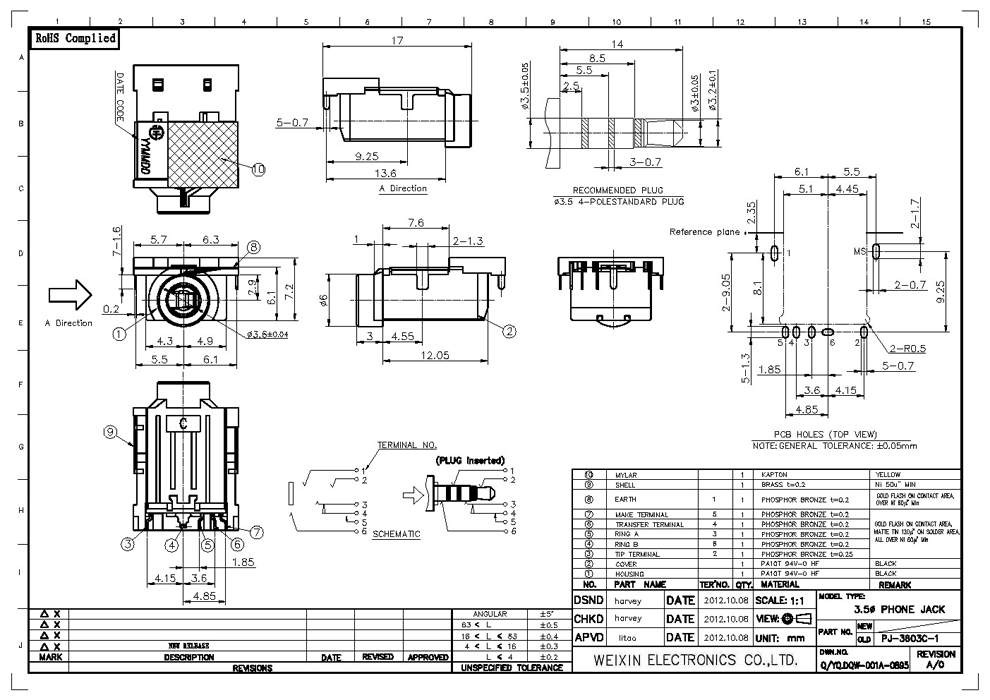

■产品类型特征 外形規格: 17mm(L)*12mm(W)*7.2mm(H) DIA(ø): 3.5mm PCB安裝方式: DIP 級數: 4 Pole ■應用領域：PC及外圍設備、FP-TV HD 音響/DVD播放器 |
■材料及表面处理
| PART NAME | MATERIAL | REMARK |
| HOUSING | HIGH TEMP.THERMO PLASTIC,UL94V-0 | BALCK |
| COVER | HIGH TEMP.THERMO PLASTIC,UL94V-0 | |
| TIP TERMINAL | PHOSPHOR BRONZE | GOLD FLASH ON CONTACT AREA MATTE TIN 120u" ON SOLDER AREA ALL OVER Ni 60u" MIN |
| RING B | PHOSPHOR BRONZE | |
| RING A | PHOSPHOR BRONZE | |
| TRANSFER TERMINAL | PHOSPHOR BRONZE | |
| MAKE TERMINAL | PHOSPHOR BRONZE | |
| EARTH | PHOSPHOR BRONZE | GOLD FLASH ON CONTACT AREA OVER Ni 60u" MIN |
| SHELL | BRASS | Ni 50u" MIN |
| MYLAR | KAPTON | YELLOW |
■主要技術指標
使用温度範圍 Temperature：-40℃～+85℃
額定負荷 Rated Load：DC 12V 1A
接觸電阻 Contact Resistance: ≤30mΩ
絕緣電阻 Insulation Resistance: ≥100MΩ
耐壓 Withstand Voltage：≥AC500V
插入力 Insertion Force：3～30N
拔出力 Withdrawal Force：3～30N
壽命 Life: ≥5000 Cycles
使用温度範圍 Temperature：-40℃～+85℃
額定負荷 Rated Load：DC 12V 1A
接觸電阻 Contact Resistance: ≤30mΩ
絕緣電阻 Insulation Resistance: ≥100MΩ
耐壓 Withstand Voltage：≥AC500V
插入力 Insertion Force：3～30N
拔出力 Withdrawal Force：3～30N
壽命 Life: ≥5000 Cycles
