CR CONNECTOR SERIES
|

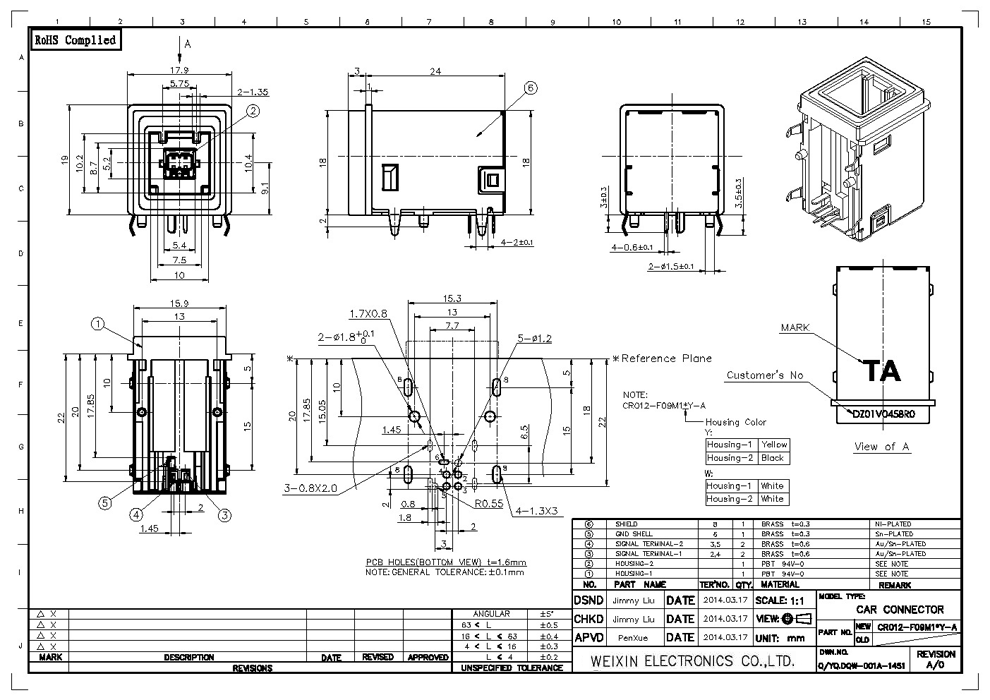

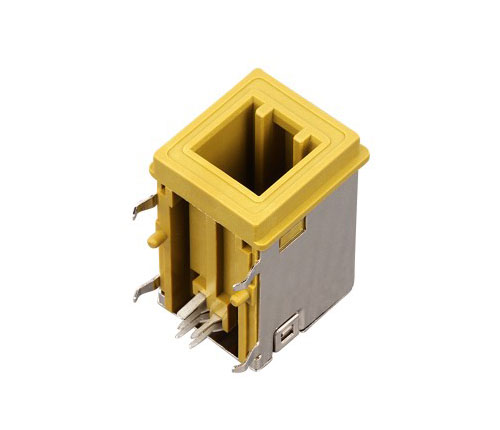

CR012-F09M1WY-A
■外形規格: 27mm(L)*17.9mm(W)*19mm(H) 方向: 90° PCB安裝方式：DIP PIN數: 4 ■應用領域：车载导航 |
■材料及表面处理
| PART NAME | MATERIAL | REMARK |
| HOUSING-1 | PBT 94V-0 | SEE NOTE |
| HOUSING-2 | PBT 94V-0 | SEE NOTE |
| SIGNAL TERMINAL-1 | BRASS | Au/Sn-PLATED |
| SIGNAL TERMINAL-2 | BRASS | Au/Sn-PLATED |
| GND SHELL | BRASS | Sn-PLATED |
| SHIELD | BRASS | Ni-PLATED |
使用温度範圍 Temperature：-40℃～+105℃
接觸電阻 Contact Resistance: ≤30mΩ
絕緣電阻 Insulation Resistance:≥100MΩ
耐壓 Withstand Voltage：AC 800V
插入力 Insertion Force：≤45N
拔出力 Withdrawal Force：≥110N
接觸電阻 Contact Resistance: ≤30mΩ
絕緣電阻 Insulation Resistance:≥100MΩ
耐壓 Withstand Voltage：AC 800V
插入力 Insertion Force：≤45N
拔出力 Withdrawal Force：≥110N
